PNEUMATIC TILT TABLE

Tilted Wall on Pneumatic Tilt Table

Quality Panels, Every Time

The Panels Plus Tilt Table allows operators to easily access both sides of the wall panel. It offers an ergonomic design that pneumatically tilts the panel for easy access to either side of the wall panel. The Tilt Table is compatible with both wood and light-gauge steel wall panels.

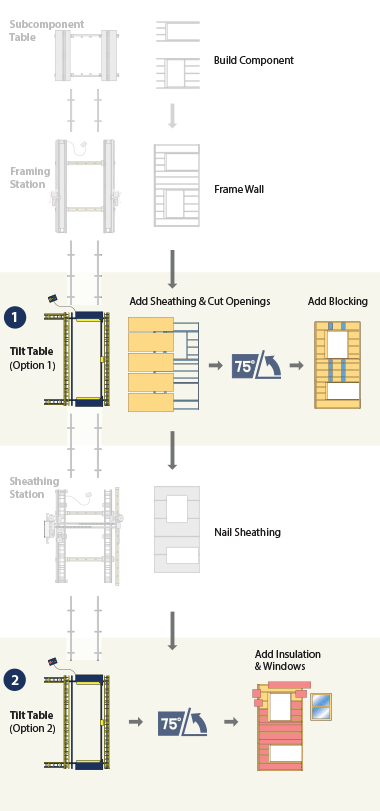

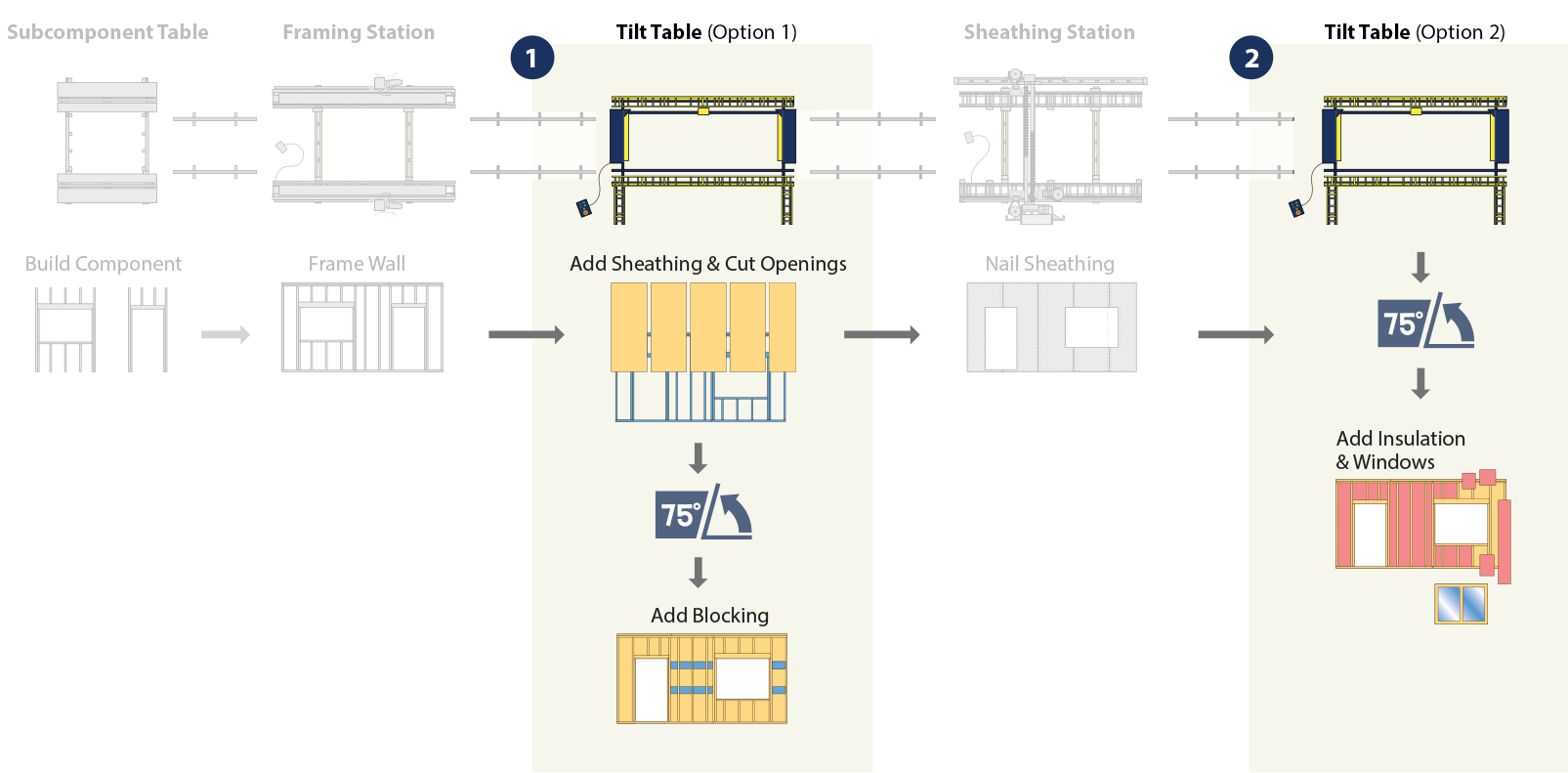

This model can be stand-alone or integrated into a full production line.

Benefits:

  • Ergonomic design
  • Single person operation
  • Provides working access to either side of wall panel
Request a Quote

Pneumatic Tilt Table

With single person operation, the Tilt Table pneumatically lifts the wall panel from lying flat to a 75-degree angle.

The Panels Plus Tilt Table provides the ability to easily access all sides of the wall panel, including the backside. This allows the operator to inspect the wall panel or to install horizontal blocking.

How it Works

The Tilt Table has various features including horizontal rollers, pneumatic lift cylinders, and a movable control pedestal. The Tilt Table pneumatically lifts the wall panel from lying flat to a 75-degree angle.

Once the panel is rolled into the tilt table, it is clamped tightly in place using the controls on the movable control pedestal. Once clamped, the panel will stay secured when tilted.

Once the panel is tilted, the operator has easy access to work on the backside of the wall. This allows the operator to inspect the wall panel or to install horizontal blocking.

Pneumatic Tilt Table Specs

Electrical• 120Vac/60Hz/15amp
Air• 15 CFM @ 90-120psig
Pneumatic Lift Cylinders• Raise the panel to a 75-degree angle
Overall Product Dimensions• 18’2’’L x 12’6’’ W
Wall Panel Size• 6’8” to 12’4’’H x Up to 16’L
Compatible Materials• Lumber from 2×4 to 2×10
Working Height• 33’’ roller height
Tilt Table Construction• Welded steel construction
Horizontal Rollers• Easily move wall panels in and out of the table
Moveable Work Pedestal• Clamps/unclamps the tilt table
• Tilts the wall up and down


Pneumatic Tilt Table Resources

Pneumatic Tilt Table Sell Sheet

Tilt Table

Panels Plus Catalog

Pneumatic Tilt Table Video

Pneumatic Tilt Table

Pneumatic Tilt Table

The Panels Plus Tilt Table allows operators to easily access both sides of the wall panel. It offers an ergonomic design that pneumatically tilts the panel for easy access to either side of the wall panel. The Tilt Table is compatible with both wood and light-gauge steel wall panels.
