3-TABLE ROUTER LINE

The Panels Plus 3-Table Router Line is similar to the 3-Table line and includes a Squaring & Routing Station in place of a Squaring Station.
This station incorporates a manual X-Y router bridge for routing out rough openings. This production line consists of a Framing Station,
Squaring and Routing Station, Sheathing Station, Subcomponent Tables and Roller Conveyors

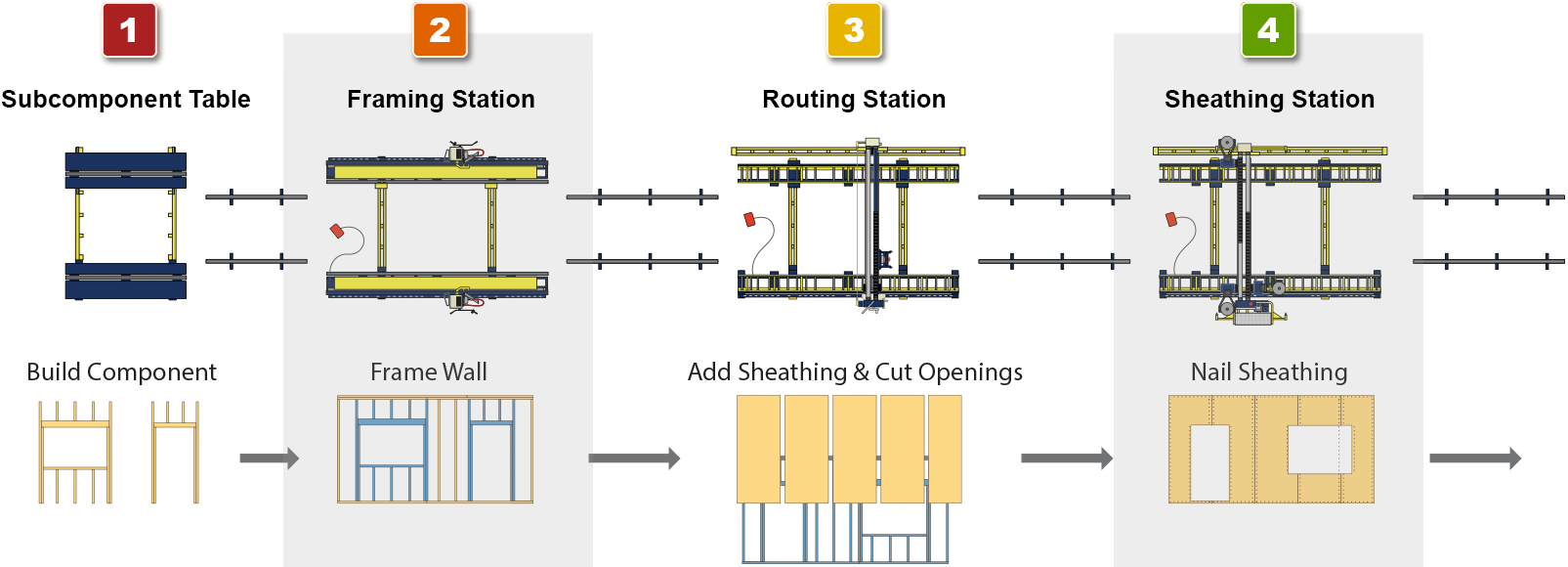

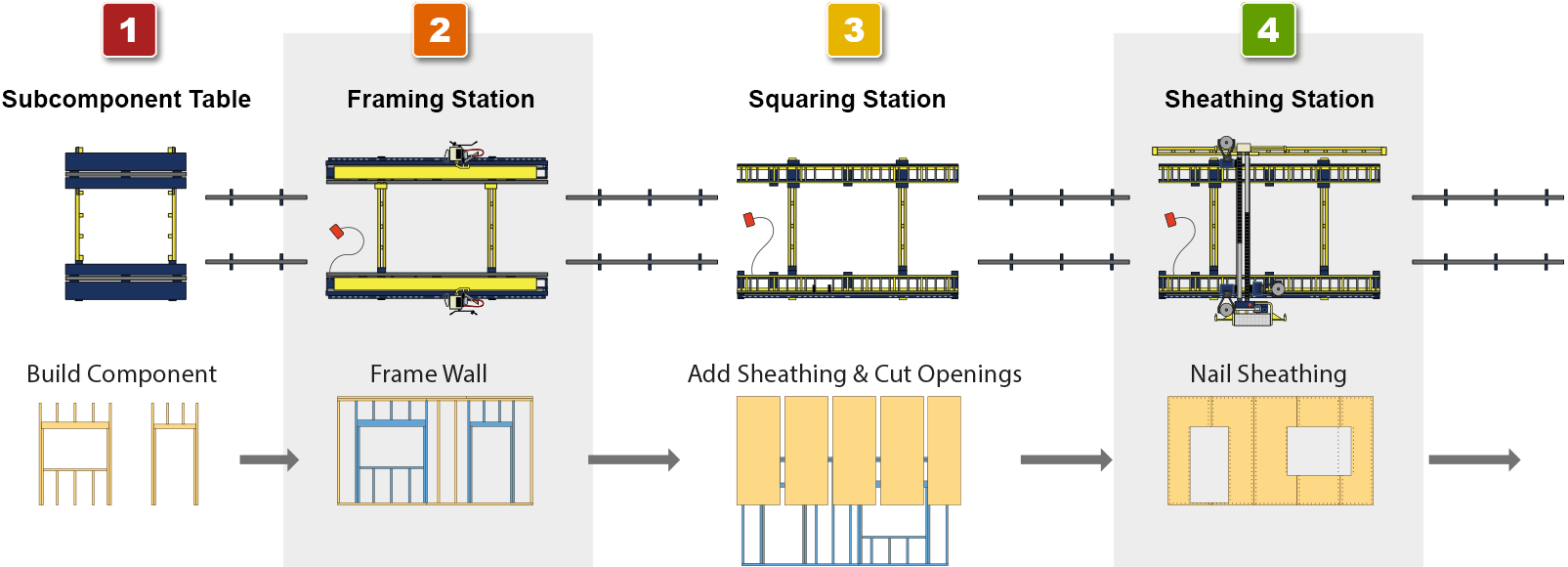

Panels Plus Router Line Diagram

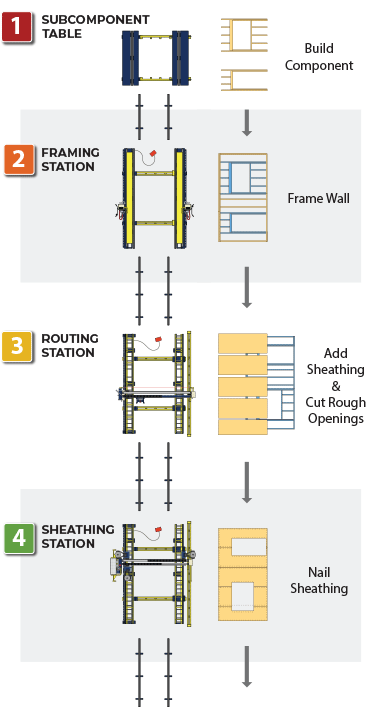

Panel Plus Router Line Vertical Diagram

WORKING STATIONS in a 3-TABLE ROUTER LINE

SUBCOMPONENT TABLE

Panels Plus Subcomponent Table for hand building window and door frames for interior and exterior walls.
Animation of what happens at a subcomponent table

The Subcomponent Table is available in two sizes, 12′ and 18′. Placed at the beginning of the production line, this product is used to build rough openings. It has pop-up rollers, a squaring edge, and a telescoping side that manually rolls in and out to set the component height. These tables can be adjusted to match the height of your station or system, making it easy to transition subcomponents from the tables to your desired location.

FRAMING STATION

Panels Plus Framing Station - Aids in framing walls around pre-made subcomponent elements.

The Framing Station is the first machine in the 3-Table Router Line and holds the plates, subcomponents, and studs squarely in place for fastening. Panels Plus offers three different Framing Stations: Non-Clamping Framing Station, Framing Station with Locators or Wide Plate Framing Station.

The Framing Stations can be ordered with or without indexing tool carriages. The carriages semi-automatically fasten the top and bottom plates to the studs with the press of a single button.

ROUTING STATION

Router Station Icon
Animation of what work is done at the Squaring Station

The Routing Station is the second machine in the 3-Table Router Line and holds the wall panel square while sheathing is tacked in place and rough openings are routed out. The Squaring and Routing Station incorporates the Squaring Station with a manual X-Y router bridge. The router is available in 120v or 230v 3ph.

SHEATHING STATION

Panels Plus Sheathing Station - Semi and fully automated stations that nail sheathing on a pre-programed pattern
Animation of nailing that takes place at the Sheathing Station

The Sheathing Station is the last machine in the 3-Table Router Line and is designed to fasten sheathing to wall panels. It features a single tool bridge that smoothly traverses the wall panel, shooting nails at a preset spacing. The Sheathing Station also has a touchscreen with 9 presets to easily change fastener spacing.

The Sheathing Station can be ordered as a Single Beam Sheathing Station with plate stitchers, a Dual Beam Sheathing Station, or our fully automated Platinum Series Sheathing Station.

The plate stitchers offer flexibility in fastener spacing while stitching the top and bottom plates.

CONVEYORS and POWER CONVEYORS

Panels Plus Conveyors - Perfect for moving wall panels down the production line, either manually or automatically.

Conveyors are available in two options, manual and powered. They are placed between stations to transport subcomponents from one station to another, and to act as a buffer zone while other wall panels are being constructed. They are also commonly placed at the end of a system line to hold wall panels while they await stacking.
