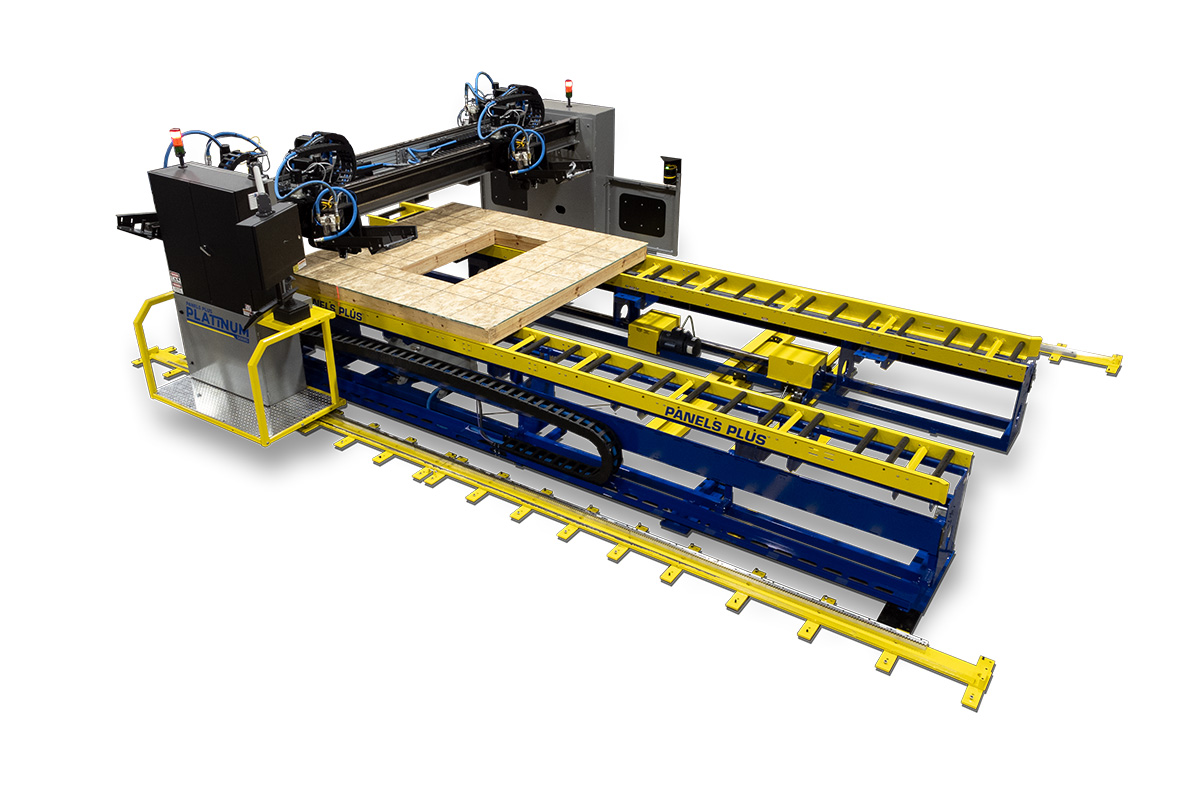

QUAD TOOL AUTOMATED SHEATHING STATION

Added Efficiency for Sheathing Walls

The Quad-Tool Automated Sheathing Station is the Panels Plus flagship, high- automation sheathing solution. Engineered to minimize manual labor, the system automates wall panel production by executing precise, software-driven fastening cycles across vertical and horizontal framing members.

Key Technical Features

Quad-Tool Nailing Bridge: Multi-carriage assembly supporting high-speed, multi-fastener placement.
Servo-Driven Motion: High-precision X, Y, and Z positioning motors for smooth and reliable tool indexing.
Plate Stitchers: Dedicated tooling for automated perimeter and horizontal member fastening.
Intuitive Operator Interface & Joystick Control: Modern HMI for automated program execution, paired with a manual joystick override for flexible operation.
Squaring Table & Operator Platform: Integrated table for squaring the wall and ergonomic operator Platform.
Safety & Tool Care: Integrated laser safety scanners for plant floor protection, paired with automated tool lubrication systems and high-capacity nail coil mounts to maximize uptime.
